Bootstrap 2 选项卡插件 - Bootstrap 2 基础教程

Bootstrap 2 内置了选项卡插件

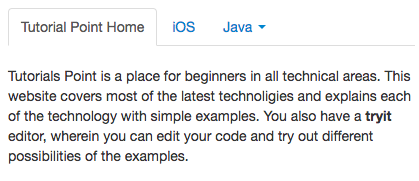

panel demo

本章我们将学习如何通过数据属性来创建选项卡接口

使用

我们可以通过以下两种方式启用选项卡标签

通过 data 属性：

可以通过添加 data-toggle="tab" 或 data-toggle="pill" 到锚文本链接中

添加 nav 和 nav-tabs 类到 ul 中
```
<ul class="nav nav-tabs">
    <li><a href="#identifier" data-toggle="tab">Home</a></li>
     ...
</ul>
```

通过 JavaScript:**

可以通过 Javascript 来启用选项卡

$('#myTab a').click(function (e) {
    e.preventDefault()
    $(this).tab('show')
})

下面的代码以不同的方式来激活各个选项卡

// 通过名称选取选项卡
$('#myTab a[href="#profile"]').tab('show')

// 选取第一个选项卡
$('#myTab a:first').tab('show')

// 选取最后一个选项卡
$('#myTab a:last').tab('show')

// 选择第三个选项卡 (0-第一个选项)
$('#myTab li:eq(2) a').tab('show')

淡入淡出效果

如果需要为选项卡设置淡入淡出效果, 需要添加 .fade 到每个 .tab-pane 后面

第一个选项卡必须添加 .in 类

<div class="tab-content">
  <div class="tab-pane fade in active" id="home">...</div>
  <div class="tab-pane fade" id="svn">...</div>
  <div class="tab-pane fade" id="ios">...</div>
  <div class="tab-pane fade" id="java">...</div>
</div>

下面的范例演示了使用 data 数据的选项卡及其淡入淡出的效果

<ul id="myTab" class="nav nav-tabs">
   <li class="active">
      <a href="#home" data-toggle="tab">
         Tutorial Point Home
      </a>
   </li>
   <li><a href="#ios" data-toggle="tab">iOS</a></li>
   <li class="dropdown">
      <a href="#" id="myTabDrop1" class="dropdown-toggle"
         data-toggle="dropdown">Java
         <b class="caret"></b>
      </a>
      <ul class="dropdown-menu" role="menu" aria-labelledby="myTabDrop1">
         <li><a href="#jmeter" tabindex="-1" data-toggle="tab">jmeter</a></li>
         <li><a href="#ejb" tabindex="-1" data-toggle="tab">ejb</a></li>
      </ul>
   </li>
</ul>
<div id="myTabContent" class="tab-content">
   <div class="tab-pane fade in active" id="home">
      <p>Tutorials Point is a place for beginners in all technical areas.
         This website covers most of the latest technoligies and explains
         each of the technology with simple examples. You also have a
         <b>tryit</b> editor, wherein you can edit your code and
         try out different possibilities of the examples.</p>
   </div>
   <div class="tab-pane fade" id="ios">
      <p>iOS is a mobile operating system developed and distributed by Apple
         Inc. Originally released in 2007 for the iPhone, iPod Touch, and
         Apple TV. iOS is derived from OS X, with which it shares the
         Darwin foundation. iOS is Apple's mobile version of the
         OS X operating system used on Apple computers.</p>
   </div>
   <div class="tab-pane fade" id="jmeter">
      <p>jMeter is an Open Source testing software. It is 100% pure
      Java application for load and performance testing.</p>
   </div>
   <div class="tab-pane fade" id="ejb">
      <p>Enterprise Java Beans (EJB) is a development architecture
         for building highly scalable and robust enterprise level
         applications to be deployed on J2EE compliant
         Application Server such as JBOSS, Web Logic etc.
      </p>
   </div>
</div>
<script src="/static/lib/bootstrap/2.3.2/docs/assets/js/jquery.js"></script>
<script src="/static/lib/bootstrap/2.3.2/docs/assets/js/bootstrap.min.js"></script>

运行范例 »

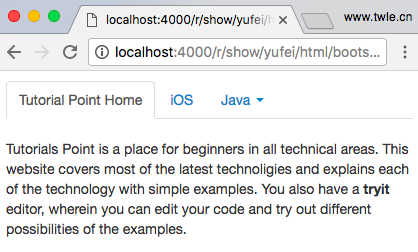

运行以上范例，输出如下

panel demo

方法

$().tab: 这个方法可以激活选项卡元素和内容容器

选项卡需要用一个 data-target 或者和在 DOM 中一个 href 的容器节点

<ul class="nav nav-tabs" id="myTab">
  <li class="active"><a href="#identifier" data-toggle="tab">Home</a></li>
  .....
</ul>
<div class="tab-content">
  <div class="tab-pane active" id="home">...</div>
  .....
</div>
<script>
  $(function () {$('#myTab a:last').tab('show')})
</script>

下面的范例演示了使用选项卡插件的方法 .tab

<ul id="myTab" class="nav nav-tabs">
   <li class="active"><a href="#home" data-toggle="tab">
      Tutorial Point Home</a>
   </li>
   <li><a href="#ios" data-toggle="tab">iOS</a></li>
   <li class="dropdown">
      <a href="#" id="myTabDrop1" class="dropdown-toggle"
         data-toggle="dropdown">Java <b class="caret"></b>
      </a>
      <ul class="dropdown-menu" role="menu" aria-labelledby="myTabDrop1">
         <li><a href="#jmeter" tabindex="-1" data-toggle="tab">
            jmeter</a>
         </li>
         <li><a href="#ejb" tabindex="-1" data-toggle="tab">
            ejb</a>
         </li>
      </ul>
   </li>
</ul>
<div id="myTabContent" class="tab-content">
   <div class="tab-pane fade in active" id="home">
      <p>Tutorials Point is a place for beginners in all technical areas.
         This website covers most of the latest technoligies and explains
         each of the technology with simple examples. You also have a
         <b>tryit</b> editor, wherein you can edit your code and
         try out different possibilities of the examples.</p>
   </div>
   <div class="tab-pane fade" id="ios">
      <p>iOS is a mobile operating system developed and distributed by Apple
         Inc. Originally released in 2007 for the iPhone, iPod Touch, and
         Apple TV. iOS is derived from OS X, with which it shares the
         Darwin foundation. iOS is Apple's mobile version of the
         OS X operating system used on Apple computers.</p>
   </div>
   <div class="tab-pane fade" id="jmeter">
      <p>jMeter is an Open Source testing software. It is 100% pure
      Java application for load and performance testing.</p>
   </div>
   <div class="tab-pane fade" id="ejb">
      <p>Enterprise Java Beans (EJB) is a development architecture
         for building highly scalable and robust enterprise level
         applications to be deployed on J2EE compliant
         Application Server such as JBOSS, Web Logic etc.
      </p>
   </div>
</div>
<script src="/static/lib/bootstrap/2.3.2/docs/assets/js/jquery.js"></script>
<script src="/static/lib/bootstrap/2.3.2/docs/assets/js/bootstrap.min.js"></script>
<script>$(function () {$('#myTab li:eq(1) a').tab('show');});
</script>

运行范例 »

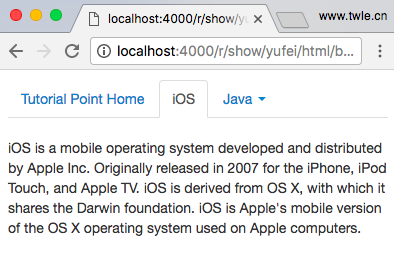

运行以上范例，输出如下

panel demo

事件

下面列出了选项卡插件的事件，这些事件可在函数中当勾子使用

show.bs.tab

该事件可以在选项卡中触发，需要在选项卡显示之前分别使用 event.target 和 event.relatedTarget 事件到目标激活选项卡和前一个选项卡
```
$('a[data-toggle="tab"]').on('show.bs.tab', function (e){
    e.target // 激活选项卡
    e.relatedTarget // 前一个选项卡
})
```
shown.bs.tab

该事件在选项卡显示前被触发

分别使用 event.target 和 event.relatedTarget 事件到目标激活选项卡和前一个选项卡
```
$('a[data-toggle="tab"]').on('shown.bs.tab', function (e){
    e.target // 激活选项卡
    e.relatedTarget // 前一个选项卡
})
```

下面的范例演示了是插件事件的使用，范例中将显示当前及先前访问过的选项卡

<p class="active-tab"><strong>Active Tab</strong>: <span></span></p>
<p class="previous-tab"><strong>Previous Tab</strong>: <span></span></p>
<hr>
<ul id="myTab" class="nav nav-tabs">
   <li class="active"><a href="#home" data-toggle="tab">
      Tutorial Point Home</a></li>
   <li><a href="#ios" data-toggle="tab">iOS</a></li>
   <li class="dropdown">
      <a href="#" id="myTabDrop1" class="dropdown-toggle"
         data-toggle="dropdown">
         Java <b class="caret"></b></a>
      <ul class="dropdown-menu" role="menu" aria-labelledby="myTabDrop1">
         <li><a href="#jmeter" tabindex="-1" data-toggle="tab">jmeter</a></li>
         <li><a href="#ejb" tabindex="-1" data-toggle="tab">ejb</a></li>
      </ul>
   </li>
</ul>
<div id="myTabContent" class="tab-content">
   <div class="tab-pane fade in active" id="home">
      <p>Tutorials Point is a place for beginners in all technical areas.
         This website covers most of the latest technoligies and explains
         each of the technology with simple examples. You also have a
         <b>tryit</b> editor, wherein you can edit your code and
         try out different possibilities of the examples.</p>
   </div>
   <div class="tab-pane fade" id="ios">
      <p>iOS is a mobile operating system developed and distributed by Apple
         Inc. Originally released in 2007 for the iPhone, iPod Touch, and
         Apple TV. iOS is derived from OS X, with which it shares the
         Darwin foundation. iOS is Apple's mobile version of the
         OS X operating system used on Apple computers.</p>
   </div>
   <div class="tab-pane fade" id="jmeter">
      <p>jMeter is an Open Source testing software. It is 100% pure
      Java application for load and performance testing.</p>
   </div>
   <div class="tab-pane fade" id="ejb">
      <p>Enterprise Java Beans (EJB) is a development architecture
         for building highly scalable and robust enterprise level
         applications to be deployed on J2EE compliant
         Application Server such as JBOSS, Web Logic etc.
      </p>
   </div>
</div>
<script src="/static/lib/bootstrap/2.3.2/docs/assets/js/jquery.js"></script>
<script src="/static/lib/bootstrap/2.3.2/docs/assets/js/bootstrap.min.js"></script>
<script>
   $(function(){
      $('a[data-toggle="tab"]').on('shown.bs.tab', function (e) {
      // 获取已激活选项卡的名称
      var activeTab = $(e.target).text();
      // 获取先前选项卡的名称
      var previousTab = $(e.relatedTarget).text();
      $(".active-tab span").html(activeTab);
      $(".previous-tab span").html(previousTab);
   });
});
</script>

运行范例 »

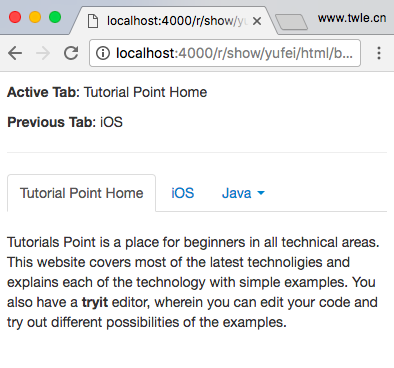

运行以上范例，输出如下

panel demo
