Canvas 图像混排模式 - Canvas 基础教程

上一章节中我们使用 ctx.globalCompositeOperation=xor 属性演示了如何去掉两个图形的重叠部分

本章节我们把所有的图形混排模式一并用一个范例演示出来

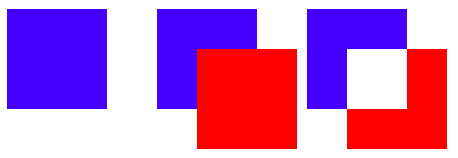

我们会使用上图这种绘制模式，首先绘制一个蓝色的矩形，然后绘制一个红色矩形和它重叠，看看不同的图形混排模式带来的效果

所有代码如下

<!DOCTYPE html>
<meta charset="utf-8">
<div style="border:1px solid #ccc">
<canvas id="canvas-1" width="500" height="200">
</canvas>
</div>

<script>

var gco = [ 'source-over','source-in','source-out','source-atop',
            'destination-over','destination-in','destination-out','destination-atop',
            'lighter', 'copy','xor', 'multiply', 'screen', 'overlay', 'darken',
            'lighten', 'color-dodge', 'color-burn', 'hard-light', 'soft-light',
            'difference', 'exclusion', 'hue', 'saturation', 'color', 'luminosity'
          ];

var canvas = document.getElementById("canvas-1");

canvas.width = 500;
canvas.height = 2700;
var ctx = canvas.getContext("2d");


function draw()
{
    for (var i = 0; i < gco.length; i++ )
    {
        ctx.font = "16px Microsoft YaHei"
        ctx.textBaseline = "middle";
        ctx.fillStyle="#333"

        ctx.save();
        ctx.fillText(gco[i],10,15);
        ctx.fillStyle = "blue";
        ctx.fillRect(10, 35, 50, 50);
        ctx.translate(70,0)
        ctx.fillStyle = "blue";
        ctx.fillRect(10, 35, 50, 50);
        ctx.fillStyle = "red";
        ctx.fillRect(25, 50, 50, 50);

        var canvas2 = document.createElement("canvas");
        ctx2 = canvas2.getContext("2d");
        ctx2.fillStyle = "blue";
        ctx2.fillRect(10, 35, 50, 50);
        ctx2.globalCompositeOperation = gco[i];
        ctx2.fillStyle = "red";
        ctx2.fillRect(25, 50, 50, 50);
        ctx2.globalCompositeOperation = "source-over";


        ctx.drawImage(canvas2,85,0);

        ctx.restore();
        ctx.translate(0,100);
    }
}

draw();
</script>

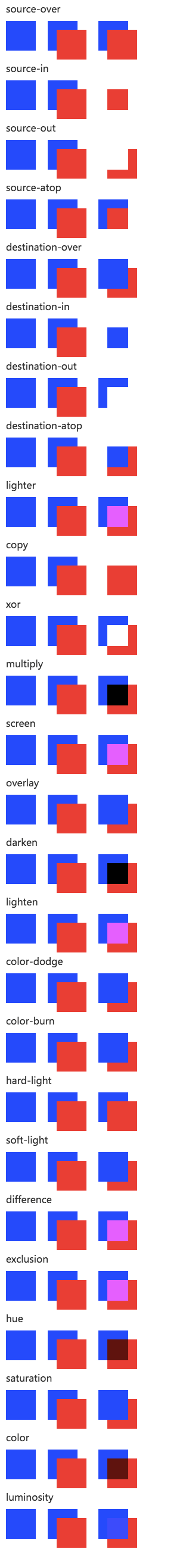

运行结果如下
