小游戏飞行的子弹

上一章节中我们做了一个资源加载器，所以可以很轻松的加载多个资源了...

本章节我们来实现 打飞机 小游戏中的子弹效果

同样，我们也不使用官方的图片，而是使用下面这张雪碧图

  1. 图片地址为: https://www.twle.cn/static/i/minigame/bullet.png
  2. 图片大小为 180x60
  3. 每个子弹大小为 60x60

下载这张图片，并保存到 images 目录

废话不多说，我们先绘制第一颗飞机

我们从底部正中间发射子弹

game.js

var c = wx.createCanvas();
var ctx = c.getContext('2d');

var bullet = wx.createImage();

function reset() {

    ctx.save();
    ctx.fillStyle = "#fff";
    ctx.fillRect(0, 0, c.width, c.height);
    ctx.restore();
}

function draw_copy() {
    ctx.save();
    ctx.textAlign = "center" // 居中对齐
    ctx.textBaseline = "middle" //垂直居中绘制
    ctx.fillStyle = "#aaa";
    ctx.font = "16px Arial" // 字体大小 16 像素
    ctx.fillText("简单教程，简单编程", c.width / 2, (c.height - 108))
    ctx.fillText(" © 2015-2018 www.twle.cn", c.width / 2, (c.height - 128));
    ctx.restore();
}

bullet.onload = function () {
    reset(ctx);

    ctx.drawImage(bullet, 0, 0, 60,60, c.width / 2 - 30, c.height - 30, 30, 30);
    draw_copy();
}

reset();

bullet.src = 'images/bullet.png'

虽然子弹大小为 60x60 ，但我们把它绘制小一点，不然一屏幕都放不下几颗子弹

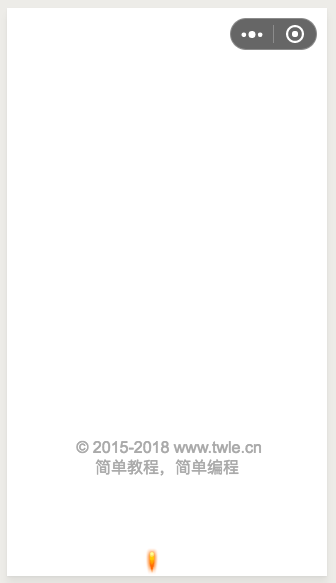

运行效果如下

对子弹进行封装

因为剧情 (接下里的教程) 需要我们对子弹做一些封装

function Bullet()
{
    // 位置
    this.x = 0;
    this.y = 0;

    //宽高
    this.w = 30;
    this.h = 30;

    // 飞行速度
    this.speed = -2;

    // 子弹图片
    this.img = null;

    // 子弹类型
    this.kind = 1;

    // 原图位置
    this.rx = 0;
    this.ry = 0;
    this.rw = 60;
    this.rh = 60;

    this.change_kind = function(k)
    {
        this.rx = (k-1) * 60;
        this.ry = 0;
    }

    this.move = function(){
        this.y += this.speed;
    };

    this.draw = function(ctx){
        ctx.drawImage(this.img,this.rx,this.ry,
            this.rw,this.rh,
            this.x-this.w/2,this.y-this.h/2,
            this.w,this.h);
    }
}

注意

  1. 我们绘制子弹的时候，x 和 y 所代表的，就是子弹中间的位置
  2. 子弹的飞行方向是从下往上

让子弹飞起来

然后我们就可以把子弹放到动画里，让子弹飞起来

var c = wx.createCanvas();
var ctx = c.getContext('2d');

var bullet = null;


function Bullet() {
    // 位置
    this.x = 0;
    this.y = 0;

    //宽高
    this.w = 30;
    this.h = 30;

    // 飞行速度
    this.speed = 2;

    // 子弹图片
    this.img = null;

    // 子弹类型
    this.kind = 1;

    // 原图位置
    this.rx = 0;
    this.ry = 0;
    this.rw = 60;
    this.rh = 60;

    this.change_kind = function (k) {
        this.rx = (k - 1) * 60;
        this.ry = 0;
    }

    this.move = function () {
        this.y -= this.speed;
    };


    this.draw = function (ctx) {
        ctx.drawImage(this.img, this.rx, this.ry,
            this.rw, this.rh,
            this.x - this.w / 2, this.y - this.h / 2,
            this.w, this.h);
    }
}

function reset() {

    ctx.save();
    ctx.fillStyle = "#fff";
    ctx.fillRect(0, 0, c.width, c.height);
    ctx.restore();
}

function draw_copy() {
    ctx.save();
    ctx.textAlign = "center" // 居中对齐
    ctx.textBaseline = "middle" //垂直居中绘制
    ctx.fillStyle = "#aaa";
    ctx.font = "16px Arial" // 字体大小 16 像素
    ctx.fillText("简单教程，简单编程", c.width / 2, (c.height - 108))
    ctx.fillText(" © 2015-2018 www.twle.cn", c.width / 2, (c.height - 128));
    ctx.restore();
}

function animate_it() {

    reset(ctx);

    bullet.move();
    bullet.draw(ctx);

    draw_copy();

    requestAnimationFrame(animate_it);
}


bullet = new Bullet();
bullet.x = c.width / 2;
bullet.y = c.height - 15;
bullet.img = wx.createImage();
bullet.img.onload = function () {
    reset(ctx);
    bullet.draw(ctx);
    draw_copy();
    requestAnimationFrame(animate_it);
}

reset();

bullet.img.src = 'images/bullet.png'

运行演示如下

更多子弹

我们每 500ms 发射一颗子弹

这时候要使用一个数组来存储全部的子弹，还要检查子弹是否超出边界，如果超出了边界就删除子弹

game.js

var c = wx.createCanvas();
var ctx = c.getContext('2d');


var Bullets = {
    _data: [],
    move:function() {
        for (var i in this._data) {
            this._data[i].move();
            if ( this._data[i].y <= 0 ){
                this._data.splice(i, 1);
            }
        }
    },
    add:function(bullet) {
        this._data.push(bullet);
    },

    draw:function(ctx) {
        for (var i in this._data) {
            this._data[i].draw(ctx);
        }
    }
}

function Bullet() {
    // 位置
    this.x = 0;
    this.y = 0;

    //宽高
    this.w = 30;
    this.h = 30;

    // 飞行速度
    this.speed = 2;

    // 子弹图片
    this.img = null;

    // 子弹类型
    this.kind = 1;

    // 原图位置
    this.rx = 0;
    this.ry = 0;
    this.rw = 60;
    this.rh = 60;

    this.change_kind = function (k) {
        this.rx = (k - 1) * 60;
        this.ry = 0;
    }

    this.move = function () {
        this.y -= this.speed;
    };


    this.draw = function (ctx) {
        ctx.drawImage(this.img, this.rx, this.ry,
            this.rw, this.rh,
            this.x - this.w / 2, this.y - this.h / 2,
            this.w, this.h);
    }
}

function reset() {

    ctx.save();
    ctx.fillStyle = "#fff";
    ctx.fillRect(0, 0, c.width, c.height);
    ctx.restore();
}

function draw_copy() {
    ctx.save();
    ctx.textAlign = "center" // 居中对齐
    ctx.textBaseline = "middle" //垂直居中绘制
    ctx.fillStyle = "#aaa";
    ctx.font = "16px Arial" // 字体大小 16 像素
    ctx.fillText("简单教程，简单编程", c.width / 2, (c.height - 108))
    ctx.fillText(" © 2015-2018 www.twle.cn", c.width / 2, (c.height - 128));
    ctx.restore();
}

function animate_it() {

    reset(ctx);

    Bullets.move();
    Bullets.draw(ctx);

    draw_copy();

    requestAnimationFrame(animate_it);
}

function create_bullet(img)
{
    var bullet = new Bullet();
    bullet.x = c.width / 2;
    bullet.y = c.height - 15;
    bullet.img = img;
    Bullets.add(bullet);
}

var bullet_img = wx.createImage();
bullet_img.onload = function() {
    reset(ctx);
    create_bullet(bullet_img);
    Bullets.draw(ctx);
    draw_copy();

    setInterval(function(){create_bullet(bullet_img);},500);

    requestAnimationFrame(animate_it);
}

reset();

bullet_img.src = 'images/bullet.png'

运行演示如下

让飞机发射子弹

是时候组装起来让飞机发射子弹了

这时候每个子弹的产生过程是这样的

如果按下了手指，那么创建子弹，如果用户抬起手指，则取消创建子弹

game.js

var Resource = {
    _res: [], // [][] 资源对象数组, 0 表示资源 1  url  2 类型 3 是否加载完成
    _load: function (idx, ops) {
        var res = this._res[idx];
        if (!res[3]) {
            if (res[2] == "audio")
                this._load_audio(res[1], idx, ops)
            if (res[2] == "image")
                this._load_image(res[1], idx, ops);
        }
    },

    _load_image: function (src, i, ops) {
        var img = wx.createImage();
        var that = this;
        that._res[i][0] = img;
        img.onload = function () {
            that._res[i][3] = true;
        }
        img.src = src;
    },

    _load_audio: function (src, i, ops) {
        var audio = wx.createInnerAudioContext();

        if (ops != null) {
            for (var k in ops) {
                audio[k] = ops[k];
            }
        }

        var that = this;
        that._res[i][0] = audio;

        audio.onCanplay(function () {
            that._res[i][3] = true;
        });
        audio.src = src;
    },

    loaded: function (callback) {
        for (var i = 0; i < this._res.length; i++) {
            if (!this._res[i][3]) {
                var that = this;
                setTimeout(function () { that.loaded(callback); }, 200);
                return;
            }

        }
        callback();
    },

    add: function (src, type, id, ops) {
        this._res.push([null, src, type, false, id]);
        this._load(this._res.length-1, ops);
    },

    item: function (src) {
        for (var i = 0; i < this._res.length; i++) {
            if (this._res[i][1] == src) {
                return this._res[i][0];
            }
        }
        return null;
    }
}


var Bullets = {
    _data: [],
    move: function () {
        for (var i in this._data) {
            this._data[i].move();
            if (this._data[i].y <= 0) {
                this._data.splice(i, 1);
            }
        }
    },
    add: function (bullet) {
        this._data.push(bullet);
    },

    draw: function (ctx) {
        for (var i in this._data) {
            this._data[i].draw(ctx);
        }
    }
}

function Bullet() {
    // 位置
    this.x = 0;
    this.y = 0;

    //宽高
    this.w = 30;
    this.h = 30;

    // 飞行速度
    this.speed = 2;

    // 子弹图片
    this.img = null;

    // 子弹类型
    this.kind = 1;

    // 原图位置
    this.rx = 0;
    this.ry = 0;
    this.rw = 60;
    this.rh = 60;

    this.change_kind = function (k) {
        this.rx = (k - 1) * 60;
        this.ry = 0;
    }

    this.move = function () {
        this.y -= this.speed;
    };


    this.draw = function (ctx) {
        ctx.drawImage(this.img, this.rx, this.ry,
            this.rw, this.rh,
            this.x - this.w / 2, this.y - this.h / 2,
            this.w, this.h);
    }
}



var c = wx.createCanvas();
var ctx = c.getContext('2d');

var img = wx.createImage();
var plane = wx.createImage();

var bgm = wx.createInnerAudioContext();
bgm.loop = true;

var bgCanvas = null;
var offset = 0;
var w = 0;
var h = 0;
var screenWidth = c.width;
var screenHeight = c.height;

// 上一次飞机的位置
var lasted = { x: 0, y: 0 };
// 触摸区域是否在飞机内部
var in_plane = false;

// 创建点计时器
var t = null;


function init_bg() {
    bgCanvas = wx.createCanvas();
    bgCanvas.width = screenWidth;
    bgCanvas.height = screenHeight + h;

    var bgctx = bgCanvas.getContext('2d');

    var y = 0;
    var x = 0;

    // 底部多绘制一张图片
    while (y < screenHeight + h) {
        x = 0;
        while (x < screenWidth) {
            bgctx.drawImage(img, x, y, w, h);
            x += w;
        }
        y += h;
    }
}

function reset() {

    ctx.save();
    ctx.fillStyle = "#fff";
    ctx.fillRect(0, 0, c.width, c.height);
    ctx.restore();
}

function draw_copy() {
    ctx.save();
    ctx.textAlign = "center" // 居中对齐
    ctx.textBaseline = "middle" //垂直居中绘制
    ctx.fillStyle = "#aaa";
    ctx.font = "16px Arial" // 字体大小 16 像素
    ctx.fillText("简单教程，简单编程", c.width / 2, (c.height - 36))
    ctx.fillText(" © 2015-2018 www.twle.cn", c.width / 2, (c.height - 18));
    ctx.restore();
}

function animate_it() {

    reset(ctx);

    ctx.drawImage(bgCanvas, 0, offset, screenWidth, screenHeight, 0, 0, screenWidth, screenHeight);

    Bullets.move();
    Bullets.draw(ctx);

    ctx.drawImage(plane, 0, 0, 128, 128, lasted.x - 64, lasted.y - 64, 128, 128);


    draw_copy();

    offset++;
    if (offset % h == 0) {
        offset = 0;
    }

    requestAnimationFrame(animate_it);
}

wx.onShow(function () {
    bgm.play()
})

wx.onAudioInterruptionBegin(function () {
    // 暂停音乐
    bgm.stop();
    // 中断动画
    //cancelAnimationFrame(animate_it);
})

wx.onAudioInterruptionEnd(function () {

    bgm.play()
    // 恢复动画
    cancelAnimationFrame(animate_it);
})



wx.onTouchStart(function (e) {

    var x = e.touches[0].clientX;
    var y = e.touches[0].clientY;
    if (plane_hit(x, y)) {
        in_plane = true;
    }


    if (in_plane) {
        var img = Resource.item('images/bullet.png')
        create_bullet(img);
        t = setInterval(function () { create_bullet(img); }, 200);

    }
});


wx.onTouchEnd(function (e) {

    if (in_plane) {
        lasted.x = e.touches[0].clientX;
        lasted.y = e.touches[0].clientY;
        in_plane = false;
        clearInterval(t);
        t = null;
    }
});

// 触摸移动事件
wx.onTouchMove(function (e) {

    if (in_plane) {
        lasted.x = e.touches[0].clientX;
        lasted.y = e.touches[0].clientY;
    }
})

function plane_hit(x, y) {
    return x > (lasted.x - 64) &&
        x < (lasted.x + 64) &&
        y > (lasted.y - 64) &&
        y < (lasted.y + 64);
}

function start() {

    w = screenWidth > img.width ? img.width : screenWidth;
    h = img.height * (w / img.width);

    lasted.x = (screenWidth - 128) / 2;
    lasted.y = screenHeight - 128;

    bgm.play()

    init_bg();
    ctx.drawImage(plane, 0, 0, 128, 128, lasted.x, lasted.y, 128, 128);
    draw_copy();
    requestAnimationFrame(animate_it);
}

reset();

function create_bullet(img) {
    var bullet = new Bullet();
    bullet.x = lasted.x;
    bullet.y = lasted.y;
    bullet.img = img;
    Bullets.add(bullet);
}


Resource.add('images/bg.jpg', 'image');
Resource.add('audio/bgm.mp3', 'audio');
Resource.add('images/plane.png', 'image');
Resource.add('images/bullet.png', 'image');

Resource.loaded(function () {
    bgm = Resource.item('audio/bgm.mp3');
    img = Resource.item('images/bg.jpg');
    plane = Resource.item('images/plane.png');

    start();
});

运行演示如下

注意

要注意几点，一定要在绘制灰机之前绘制子弹，不然你可能会看到飞机头上飘过的刚发出的子弹

代码已经越来越长了....还好只有最后几步了
